Freeze Dryer — 0.4m² to 50m², Drying Without Damage
Freeze drying isn’t about removing water. It’s about letting ice escape as vapor directly — structure stays, flavor stays, nutrients stay. That’s the fundamental difference between a freeze-dryer and every other drying method.
Why Freeze Drying?
There’s a reason freeze-dried products sell at 3~5x the price of hot-air dried equivalents.
Hot air drying shrinks fruit, discolors vegetables, toughens meat. Freeze drying works differently: freeze the product solid, then let the ice sublimate directly into vapor under high vacuum. No liquid phase means no collapse of cellular structure.
What you get:
- Original shape retained — a freeze-dried strawberry looks like a strawberry
- Rapid rehydration — back to original in minutes
- 90%+ nutrient retention — no high-temperature degradation
- 18+ months shelf life at ambient temperature — moisture activity low enough
How Freeze-Dryer Works
Three stages. The hardware requirements are different at each stage.
Stage 1: Freezing — Drop the product temperature below its eutectic point (-30°C to -50°C for most foods). All water in the product turns to solid ice. This demands a refrigeration system capable of shelf temperatures down to -55°C.
Stage 2: Primary Drying (Sublimation) — Draw vacuum to <10Pa, then slowly raise shelf temperature. Ice transitions directly to vapor without passing through liquid. This takes 60~70% of the total cycle time. The condenser (cold trap) must stay at -45°C to -65°C to capture the escaping water vapor before it damages the vacuum pump.
Stage 3: Secondary Drying (Desorption) — Raise shelf temperature to +60°C ~ +120°C to drive off bound water. Final moisture content can go below 3%.
A complete freeze-drying cycle runs 12~35 hours depending on material thickness and water content.
CVD Series — Full Model Range
| Model | Dry Area | Batch Capacity | Cycle Time | Total Power | Ultimate Vacuum | Compressor | Application |
|---|---|---|---|---|---|---|---|
| CVD-040 | 0.4m² | 4kg | ~20h | 2kW | <10Pa | Scroll | Lab R&D |
| CVD-060 | 0.6m² | 6kg | ~20h | 3kW | <10Pa | Scroll | Lab R&D |
| CVD-100 | 1m² | 10kg | ~24h | 6kW | <10Pa | Scroll | Lab/R&D |
| CVD-200 | 2m² | 20kg | ~24h | 9kW | <10Pa | Two-stage piston | Small batch |
| CVD-500 | 5m² | 50kg | ~25h | 16~25kW | <10Pa | Scroll | Small food |
| CVD-450 | 4.5m² | 45~100kg | 12~16h | 53kW | ≤7Pa | Bitzr 33.4kW | Precision |
| CVD-1000 🔍 | 10m² | 100kg | 20~28h | 28~55kW | <10Pa | Two-stage piston | Mid-size food |
| CVD-2000 🔍 | 20m² | 200kg | 25~35h | 56kW | <10Pa | Combo pump | Batch production |
| CVD-2500 | 25m² | 250kg | 18~28h | 112kW | <10Pa | Hanbell 47.8kW | Mid-size processor |
| CVD-3000 🔍 | 30m² | 300kg | 12~20h | 73kW | ≤10Pa | Bitzer 40HP | Mushroom/general |
| CVD-5000 🔍 | 50m² | 500kg | 12~16h | 171.7kW | ≤10Pa | Hanbell RC2-200B | Large production |
CVD-1000 Freeze Dryer — 100m² / 1,000 kg per Batch
🔧 Technical Specifications
| Parameter | Value |
|---|---|
| Model | CVD-1000 |
| Drying Area | 100 m² |
| Batch Capacity | ~1,000 kg |
| Cycle Time | 15~25 hours |
| Total Installed Power | ~406 kW |
| Ultimate Vacuum | <10 Pa |
| Cold Trap Temperature | -55°C ~ -65°C |
| Shelf Temperature Range | -55°C ~ +120°C |
| Compressor | Hanbell RC screw ×2 (160 kW each) |
| Vacuum System | Six pump sets (Roots + rotary vane combo) |
| Heating System | Silicone oil circulation, contact conduction |
| Control System | Siemens S7-1200 PLC + Weintek HMI |
| Refrigerant | R404A |
| Power Supply | 380V / 415V / 480V, 3-Phase, 50/60 Hz |
| Certifications | CE (MD + LVD + EMC), CSA, BV, SGS |
⚙️ Standard Configuration
| Component | Specification | Brand/Origin |
|---|---|---|
| Compressor | RC2 series screw compressor, 160 kW | Hanbell (Taiwan) |
| Cold Trap Coil | Galvanized steel / SUS304, -65°C capability | Yuanxian (China) |
| Vacuum Pump Set | Roots + rotary vane, 6 sets | Leybold (Germany) |
| Expansion Valve | Electronic expansion valve | Alco / Danfoss |
| PLC Controller | S7-1200, programmable freeze-drying curves | Siemens (Germany) |
| Touchscreen HMI | 10" color touchscreen, curve editing/storage | Weintek (Taiwan) |

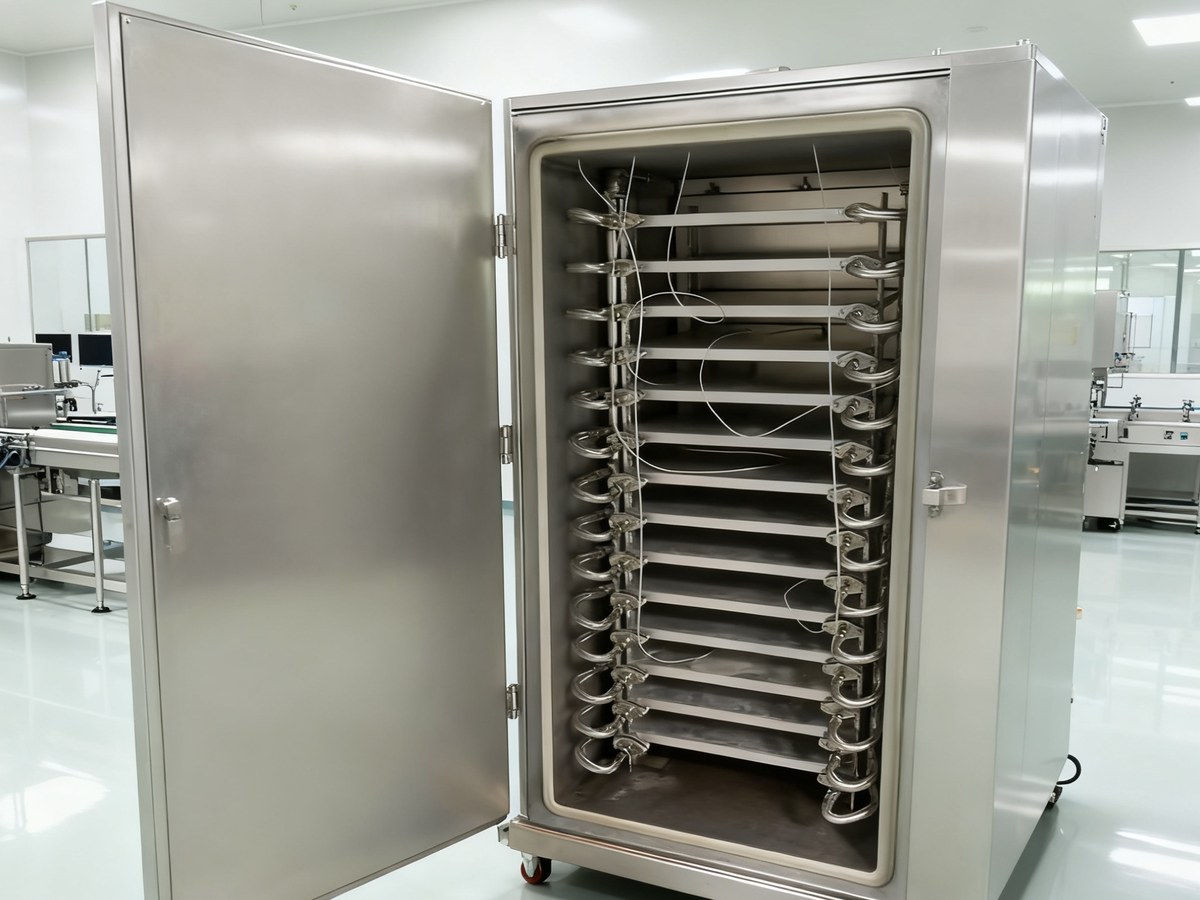

| Shelf Assembly | SUS304, silicone oil circulation channels | Yuanxian (China) |
| Vacuum Chamber | SUS304 stainless steel, reinforced structure | Yuanxian (China) |
| Oil Circulation Pump | High-temp oil pump for silicone oil heating | Yuanli (China) |
| Electrical Cabinet | LS (LG) contactors, circuit breakers, fuses | LS (South Korea) |
🌱 Applications
| Industry | Typical Products | Batch Output |
|---|---|---|
| Fruit processing | Strawberry, mango, banana, durian, apple | ~1,000 kg |
| Vegetable processing | Mushroom, broccoli, corn, carrot | ~800~1,000 kg |
| Pet food | Chicken, beef, salmon, pet treats | ~800~1,000 kg |
| Instant food | Freeze-dried coffee, soup base, smoothie mix | ~1,000 kg |
| Herbal medicine | Ginseng, cordyceps, royal jelly | ~500~800 kg |
| Industrial ingredients | Tea powder, fruit powder, bulk ingredients | ~1,000 kg |
CVD-5000 Freeze Dryer — 50m² / 500 kg per Batch
🔧 Technical Specifications
| Parameter | Value |
|---|---|
| Model | CVD-5000 |
| Drying Area | 50 m² |
| Batch Capacity | 500 kg |
| Cycle Time | 12~16 hours |
| Total Installed Power | 171.7 kW |
| Ultimate Vacuum | ≤10 Pa |
| Cold Trap Temperature | -45°C ~ -55°C |
| Shelf Temperature Range | -55°C ~ +120°C |
| Compressor | Hanbell RC2-200B screw |
| Vacuum System | Leybold rotary vane + Roots combo |
| Cooling Capacity | 80.8 kW |
| Heating System | Electric oil circulation, 90 kW |
| Power Supply | 380V / 50Hz / 3P |
| Weight | ~8,000~10,000 kg |
⚙️ Standard Configuration
| Component | Specification | Brand/Origin |
|---|---|---|
| Compressor | RC2 series screw compressor, 155 kW ×2 | Hanbell (Taiwan) |
| Cold Trap Coil | SUS304, -65°C capability | Yuanxian (China) |
| Vacuum Pump Set | Roots + rotary vane combo | Leybold (Germany) |
| Expansion Valve | Electronic expansion valve | Alco / Danfoss |
| PLC Controller | S7-1200, programmable freeze-drying curves | Siemens (Germany) |
| Touchscreen HMI | 10" color touchscreen, curve editing/storage | Weintek (Taiwan) |
| Shelf Assembly | SUS304, silicone oil circulation channels | Yuanxian (China) |
| Vacuum Chamber | SUS304 stainless steel, reinforced structure | Yuanxian (China) |
| Oil Circulation Pump | High-temp oil pump for silicone oil heating | Yuanli (China) |
| Electrical Cabinet | LS (LG) contactors, circuit breakers, fuses | LS (South Korea) |
🌱 Applications
| Industry | Typical Products | Batch Output |
|---|---|---|
| Fruit processing | Strawberry, mango, banana, durian, apple | ~2,000 kg |
| Vegetable processing | Mushroom, broccoli, corn, carrot | ~1,500~2,000 kg |
| Pet food | Chicken, beef, salmon, pet treats | ~1,500~2,000 kg |
| Tea powder / bulk ingredients | Matcha powder, fruit powder, instant tea | ~2,000 kg |
| Industrial / export | Large-volume freeze-dried produce export | ~2,000 kg |
📋 CVD-3000 50m² — Technical Specifications
🔧 Technical Specifications
| Dry Area | 30 m² |
| Batch Capacity | 300 kg |
| Cycle Time | 12~20 h |
| Shelf Temp Range | Ambient ~ +100°C |
| Cold Trap | ≤-40°C |
| Ultimate Vacuum | ≤10 Pa |
| Total Power | 73 kW |
| Compressor | Bitzer 40HP water-cooled |
| Vacuum Pump | 2X-70B + ZTB-300 Roots |
| Control | Siemens S7 PLC + 10" HMI |
| Dimensions | 7000×2100×2200 mm |
| Trays | 104 pcs (600×400×30mm) |
⚙️ Standard Configuration
| Refrigeration | Bitzer 40HP low-temp water-cooled |
| Vacuum | 2X-70B rotary vane + ZTB-300 Roots |
| Controller | Siemens S7 PLC |
| Valves | Danfoss |
🍓 Applications
| Fruit/Vegetable | Strawberry, mango, mushroom |
| Meat/Pet Food | Chicken, beef, pet treats |
| Herbal | Ginseng, reishi, extracts |
Technical Specifications

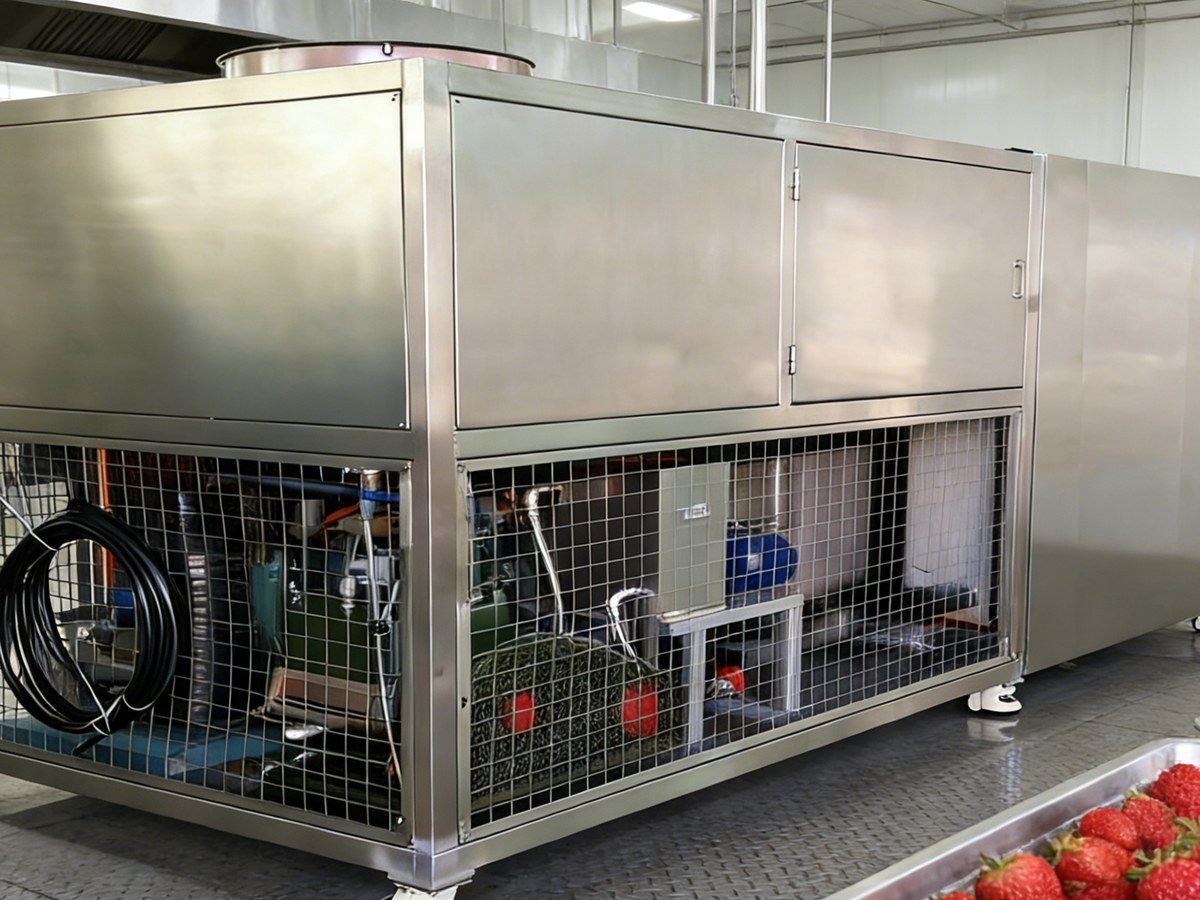

❄️ Refrigeration System
Bitzr (two-stage piston) / Hanbell (screw), evaporation -55°C~-80°C. Cold trap: -45°C ~ -65°C. Defrost: hot water spray / immersion. Refrigerant: R404A.
🌀 Vacuum System
Ultimate vacuum <10Pa (standard); ≤7Pa / ≤5Pa (optional). Pump: rotary vane (small) / two-stage piston (medium) / Leybold + Roots (large). Stainless steel piping.
🔥 Heating System
Shelf temp: -55°C ~ +120°C, uniformity ±1°C. Silicone oil circulation (contact conduction). PLC programmable freeze-drying curve.
⚡ Electrical Control
Siemens S7-200CN / S7-1200 PLC. Weintek 7"/10" touchscreen. Curve editing / storage / printing / historical data. RS485 / Ethernet (MES integration).
Applications
| Industry | Typical Products | Recommended Model | Output per Batch |
|---|---|---|---|
| Fruit processing | Strawberry, mango, banana, durian | CVD-100~CVD-1000 | 100~1000kg |
| Vegetable processing | Mushroom, asparagus, broccoli | CVD-450~CVD-3000 | 45~300kg |
| Pet food | Chicken, beef, salmon | CVD-100~CVD-500 | 100~500kg |
| Functional food | Royal jelly, ginseng, bird’s nest | CVD-040~CVD-100 | 4~50kg |
| Tea powder | Matcha, red tea powder | CVD-500 | 500kg |
| Herbal medicine | Panax notoginseng, dendrobium | CVD-100~CVD-3000 | 100~300kg |
