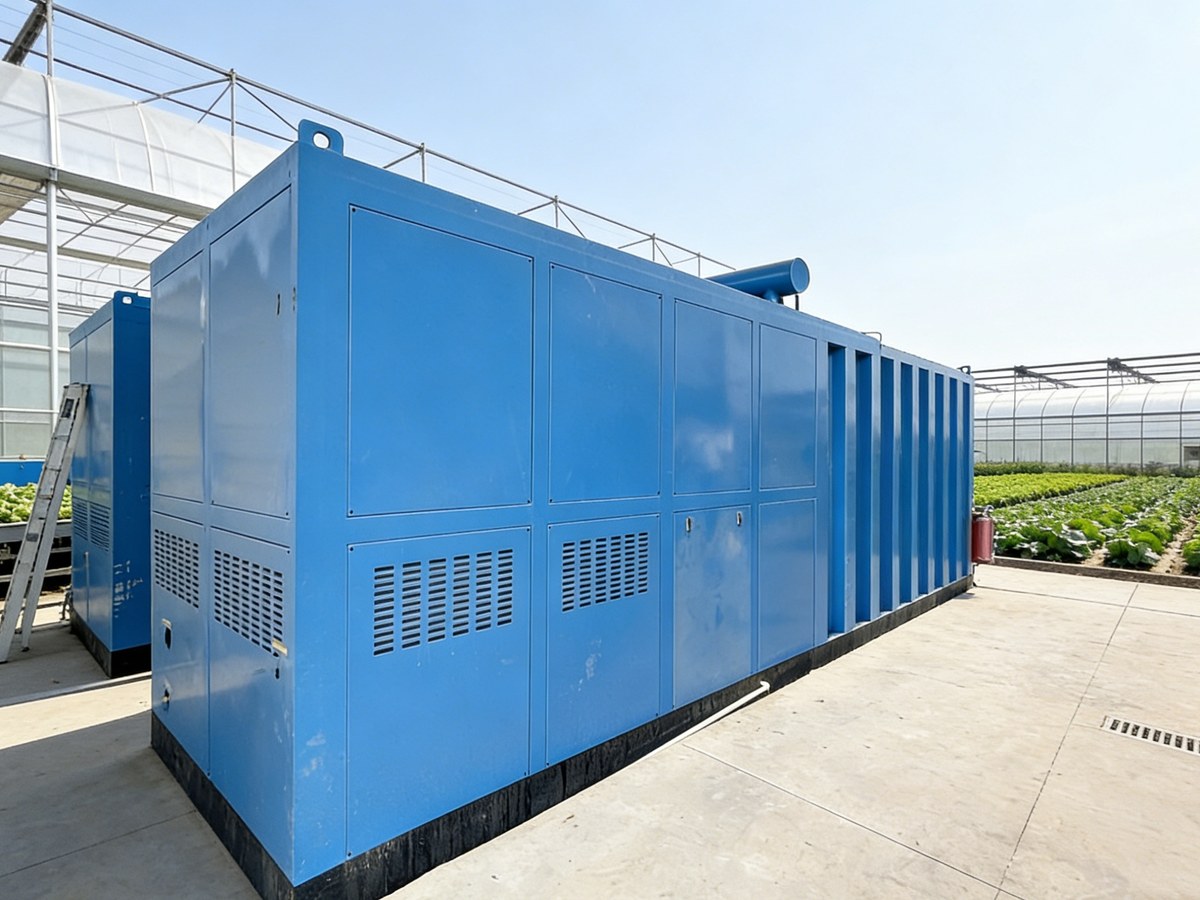

CVF-5000E-10P Vegetable Vacuum Pre-Cooler — 10-Pallet Evaporative-Condenser
CVF-5000E-10P vegetable vacuum pre-cooler handles 5000kg per batch in about 40 minutes with 1-2% weight loss. Evaporative condenser saves water, 294kW+ cooling capacity. For large bases and export produce.
Vacuum pre-cooling makes surface moisture evaporate at reduced pressure, pulling field heat out of produce fast. The CVF-5000E-10P is a 10-pallet large model handling 5000kg per batch, cooling produce to 0–10°C in about 40 minutes with 1–2% weight loss. The evaporative-condenser design saves water and suits large bases and export processing.
Overview
The CVF-5000E-10P is a 10-pallet evaporative-condenser vegetable vacuum pre-cooler for large bases and export-produce processing. The chamber is about 46m³ (L5650×W2750×H3000mm), holding 10 standard pallets. A Bitzer compressor + Leybold pump set deliver 294kW+ cooling capacity. The complete machine includes the mounting frame, vacuum chamber, vacuum pump, and refrigeration system.
Three selling points:
- Large 10-pallet size, 5000kg/batch — covers large bases and export processing
- ~40 minute pre-cooling with 1–2% weight loss
- Evaporative condenser with 294kW+ capacity — stable under heavy load
Technical Specifications
| Parameter | Value |
|---|---|
| Model | CVF-5000E-10P |
| Pallets | 10 |
| Chamber volume | ~46 m³ (L5650×W2750×H3000mm) |
| Capacity | 5000 kg/batch |
| Cycle time | ~40 min |
| Pre-cooling temperature | 0–10°C |
| Cooling capacity | 294–356 kW |
| Compressor | Bitzer, 99.7 kW |
| Vacuum pump | Leybold pump set (16.5+45 kW) |
| Condenser | Evaporative |
| Power supply | 3P-380V-50Hz |
| Ultimate vacuum | ≤600 Pa |
Core Configurations
| Component | Configuration | Note |
|---|---|---|
| Compressor | Bitzer (Germany) | 294kW+ high capacity |
| Vacuum pump | Leybold pump set | Redundant for large chamber |
| Condenser | Evaporative | Water-saving |
| Chamber | Q235 carbon steel, rust-protected | Food-contact hygiene |
| Controls | LS + Weinview HMI | Settable parameters |
Optional Configurations
| Option | Change | Cost Impact | Best For |
|---|---|---|---|
| Water-cooled upgrade | Water + tower | Per actual quote | Sites with water supply |
| Water-spray system | Adds spray cooling | +5–8% | High-respiration produce |
| Double-chamber | Alternating batch flow | +20% | Continuous operations |
Product Advantages
1. Large 10-Pallet Size
Fits standard pallets, 5000kg/batch — one machine covers a large base or export line’s daily volume.
2. Rapid Pre-Cooling
~40 minutes from field temperature to 0–10°C — over 10× faster than cold-room natural cooling.
3. Low Weight Loss
1–2% weight loss vs 3–5% in open-air cooling — better appearance and shelf life.
4. High-Capacity Evaporative Condenser
294kW+ cooling capacity with water-saving evaporative condenser — stable under heavy load.
Compatible Products
| Category | Note |
|---|---|
| Leafy vegetables | Spinach, lettuce, leafy greens |
| Fruit vegetables | Peppers, cucumber, tomato |
| Fruits | Blueberry, strawberry, cherry |
| Export produce | Export processing pre-cooling |
Delivered Projects
| Customer | Country | Application |
|---|---|---|
| Export produce base | China | 5000kg produce pre-cooling |
| Large vegetable base | China | 10-pallet pre-cooling support |
Competitive Comparison
| Item | CVF-5000E-10P | Typical local 10-pallet pre-cooler |
|---|---|---|
| Compressor | Bitzer | Often unbranded or local |
| Vacuum pump | Leybold pump set | Usually local pump |
| Cooling capacity | 294–356kW | 120–200kW common |
| Condenser | Evaporative | Often water-cooled |
FAQ
Q1: How much per batch? 5000kg per batch (10 pallets). About 40 minutes per cycle; 30–50 tonnes per day.
Q2: What is the weight loss? 1–2%. Lower than open-air cooling — better appearance and shelf life.
Q3: Evaporative vs water-cooled? Evaporative saves water and suits dry regions; water-cooled has slightly higher efficiency but needs a tower. Choose by site water conditions.
Q4: Does it need defrosting? No. Pre-cooling cycles are about 40 minutes — the vapor condenser does not need defrosting.
Q5: What warranty and response time? Full-machine warranty 1 year; major components follow brand standards. Domestic fault response within 24 hours.
Installation Requirements
Customer provides:
- 380V power supply
- Evaporative-condenser water supply and drain
- Level floor rated for the machine
Yuanxian provides:
- Installation and commissioning
- Evaporative-condenser integration
- Operator training and trial run
After-Sales Service
- 1-year full-machine warranty, lifetime technical support
- Spare parts: Bitzer and Leybold mainstream brands, short lead times
- Operating-data calibration
Selection Guide
For 10-pallet, 5000kg/batch large bases or export-produce processing, the CVF-5000E-10P evaporative version fits. With water supply, evaluate the water-cooled upgrade; for continuous operation, the double-chamber option. Tell us the produce type, field temperature, target temperature, and daily volume — we will size from your actual conditions.
