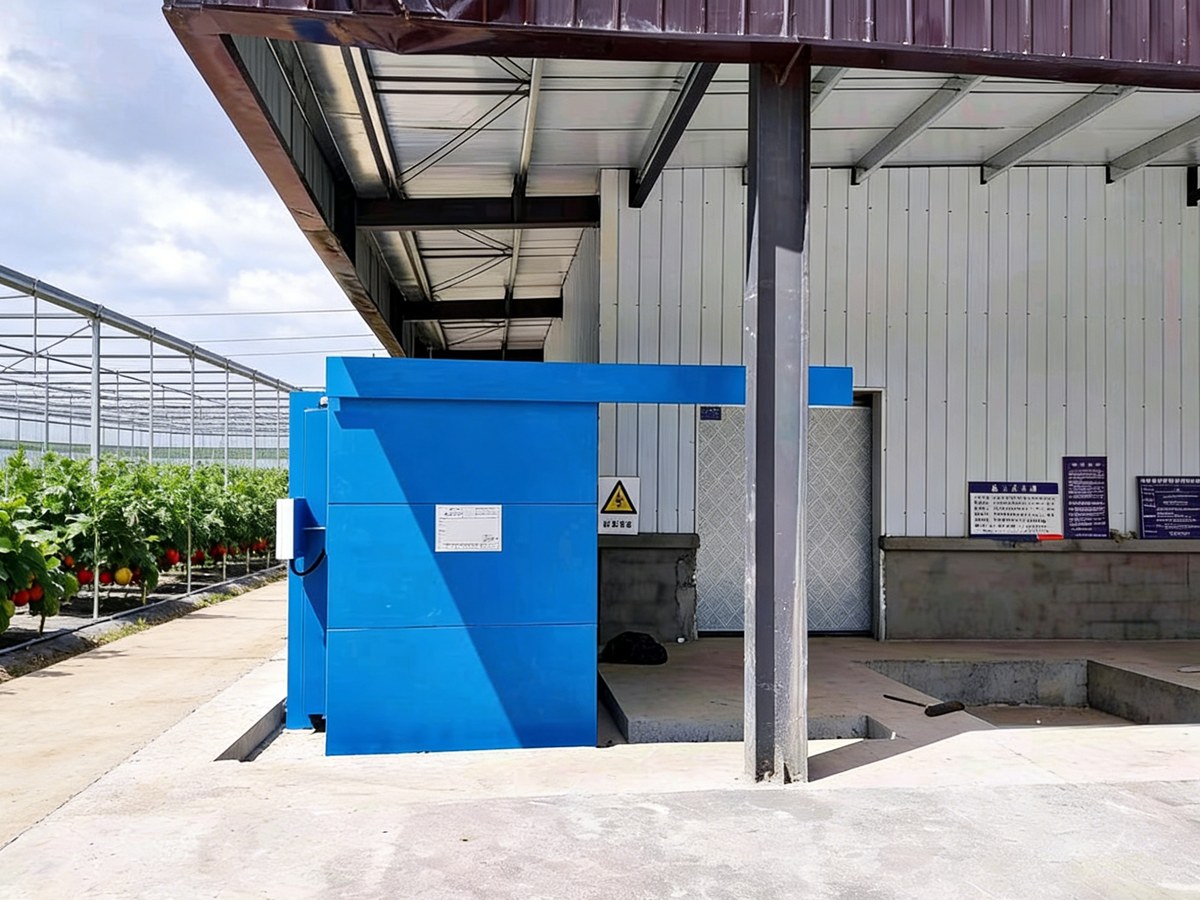

CVF-4000E-8P Vegetable Vacuum Pre-Cooler — 8-Pallet Evaporative-Condenser
CVF-4000E-8P vegetable vacuum pre-cooler handles 4000kg per batch in 30-40 minutes with 1-2% weight loss. Evaporative condenser saves water, 247kW+ cooling capacity. For large bases and export produce.
Vacuum pre-cooling makes surface moisture evaporate at reduced pressure, pulling field heat out of produce fast. The CVF-4000E-8P is an 8-pallet standard model handling 4000kg per batch, cooling leafy vegetables to 0–10°C in 30–40 minutes with 1–2% weight loss. The evaporative-condenser design saves water and suits large bases and export processing.
Overview
The CVF-4000E-8P is an 8-pallet evaporative-condenser vegetable vacuum pre-cooler for large bases and export-produce processing. The chamber is about 22–39m³ (L5200×W1940×H2200mm or per drawings), holding 8 standard pallets. A Bitzer compressor + quad vacuum pumps deliver 247kW+ cooling capacity. The complete machine includes the mounting frame, vacuum chamber, vacuum pump, and refrigeration system.
Three selling points:
- Standard 8-pallet size, 4000kg/batch — covers large bases and export processing
- 30–40 minute pre-cooling with 1–2% weight loss
- Evaporative-condenser design — water-saving, suited to hot regions
Technical Specifications
| Parameter | Value |
|---|---|
| Model | CVF-4000E-8P |
| Pallets | 8 |
| Chamber volume | ~22–39 m³ (per drawings) |
| Capacity | 4000 kg/batch |
| Cycle time | 30–40 min |
| Pre-cooling temperature | 0–10°C |
| Cooling capacity | 247–285 kW |
| Compressor | Bitzer, 87.3–99.7 kW |
| Vacuum pump | Busch/Leybold ×4, 22–30 kW |
| Condenser | Evaporative |
| Power supply | 3P-380V-50Hz |
| Ultimate vacuum | ≤600 Pa |
Core Configurations
| Component | Configuration | Note |
|---|---|---|
| Compressor | Bitzer (Germany) | 247–285kW high capacity |
| Vacuum pump | Busch/Leybold ×4 | Multi-pump parallel |
| Condenser | Evaporative | Water-saving |
| Chamber | Q235 carbon steel, rust-protected | Food-contact hygiene |
| Controls | LS + Weinview HMI | Settable parameters |
Optional Configurations
| Option | Change | Cost Impact | Best For |
|---|---|---|---|
| Water-cooled upgrade | Water + tower | Per actual quote | Sites with water supply |
| Water-spray system | Adds spray cooling | +5–8% | High-respiration produce |
| Double-chamber | Alternating batch flow | +20% | Continuous operations |
Product Advantages
1. Standard 8-Pallet Size
Fits standard pallets, 4000kg/batch — one machine covers a large base or export line’s daily volume.
2. Rapid Pre-Cooling
30–40 minutes from field temperature to 0–10°C — over 10× faster than cold-room natural cooling.
3. Low Weight Loss
1–2% weight loss vs 3–5% in open-air cooling — better appearance and shelf life for export produce.
4. Water-Saving Evaporative Condenser
Uses less water than water-cooled systems — suited to hot, dry growing regions with lower running cost.
Compatible Products
| Category | Note |
|---|---|
| Leafy vegetables | Spinach, lettuce, leafy greens |
| Fruit vegetables | Peppers, cucumber, tomato |
| Fruits | Blueberry, strawberry, cherry |
| Export produce | Export processing pre-cooling |
Delivered Projects
| Customer | Country | Application |
|---|---|---|
| Yunnan base | China | 4000kg produce pre-cooling |
| Export produce processing | China | 8-pallet pre-cooling support |
Competitive Comparison
| Item | CVF-4000E-8P | Typical local 8-pallet pre-cooler |
|---|---|---|
| Compressor | Bitzer | Often unbranded or local |
| Vacuum pump | Busch/Leybold ×4 | Usually local pump |
| Cooling capacity | 247–285kW | 100–180kW common |
| Condenser | Evaporative | Often water-cooled |
FAQ
Q1: How much per batch? 4000kg per batch (8 pallets). Leafy vegetables pre-cool in 30–40 minutes; 20–40 tonnes per day.
Q2: What is the weight loss? 1–2%. Lower than open-air cooling — better appearance and shelf life.
Q3: Evaporative vs water-cooled? Evaporative saves water and suits dry regions; water-cooled has slightly higher efficiency but needs a tower. Choose by site water conditions.
Q4: Does it need defrosting? No. Pre-cooling cycles are 30–40 minutes — the vapor condenser does not need defrosting.
Q5: What warranty and response time? Full-machine warranty 1 year; major components follow brand standards. Domestic fault response within 24 hours.
Installation Requirements
Customer provides:
- 380V power supply
- Evaporative-condenser water supply and drain
- Level floor rated for the machine
Yuanxian provides:
- Installation and commissioning
- Evaporative-condenser integration
- Operator training and trial run
After-Sales Service
- 1-year full-machine warranty, lifetime technical support
- Spare parts: Bitzer, Busch/Leybold mainstream brands, short lead times
- Operating-data calibration
Selection Guide
For 8-pallet, 4000kg/batch large bases or export-produce processing, the CVF-4000E-8P evaporative version fits. With water supply, evaluate the water-cooled upgrade; for continuous operation, the double-chamber option. Tell us the produce type, field temperature, target temperature, and daily volume — we will size from your actual conditions.
